Loading Arms

  • Generally loading arms are used in transferring petroleum and chemical products.
  • Loading arms are usually self supported assembly of pipe work, swivel joints and some form of balance mechanism. However, floating suctions has floats to raise the arm/s.
  • Such assemblies make it easy to transfer hazardous and non-hazardous fluid products such as Petroleum, Chemicals, Milk and Beverages, etc..
  • PGT has lot of experience in designing custom made loading arms for Petroleum and Chemical industries and specialises in Food, Beverages and Pharmaceutical loading arms.
Sizes: 2” (50NB), 3” (80NB), 4”(100 NB) , 6” (150NB) and 8” (200 NB)
Commonly Used Materials: Aluminum, Carbon Steel and Stainless Steel
Seals and Gaskets: Viton seals & CNAF gaskets are standard materials. However, based on application, PGT would offer the most applicable & chemically suitable materials
Loading Arm Configurations: Top Loading – Standard, Scissor, Boom types
Bottom Loading – G series, A Frame, SRA series, LRA series
Balance Mechanisms: Counter Weights, Torsion Spring, Gas Spring Pneumatic and Hydraulic

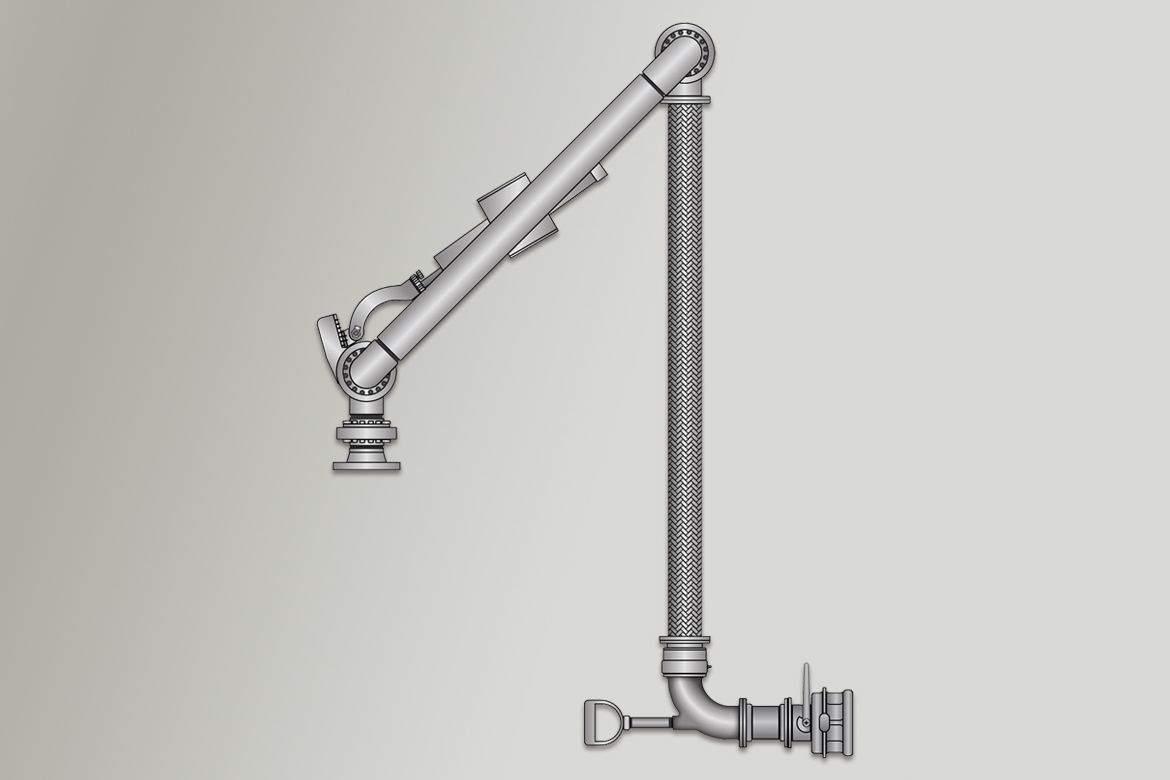

Note: Above shown image is only for pictorial representation

Floating Suctions

  • Generally floating suctions are used in transferring petroleum and petro-chemical products, including aviation fuels.
  • Such assemblies have floats to raise the arm to enable to withdraw only good quality product from the storage tank.
  • PGT has lot of experience in designing custom made loading arms for Petroleum and Chemical industries and specialises in Food, Beverages and Pharmaceutical loading arms.
Sizes: 2” (50NB), 3” (80NB), 4”(100 NB) , 6” (150NB) and 8” (200 NB)
Commonly Used Materials: Aluminum and Stainless Steel
Seals and Gaskets: Viton seals & CNAF gaskets are standard materials. However, based on application, PGT can offer the most applicable & chemically suitable materials
Types: Single Arm for standard size tanks
Dual Arm for large size tanks where single arms may not be suitable
Twin Arm for vertical tanks when single arms are not suitable
Note: Above shown image is only for pictorial representation
