Swivel Joints

  • These assemblies are mainly used to generate some flexibility in fabricated pipe work for various industrial applications.

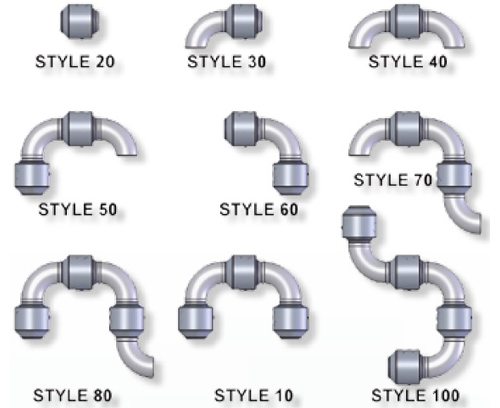

  • Most common Swivel Joint configurations are shown above.
  • PGT can offer special custom made swivel joints for loading arms, floating suctions and other requirements.
Standard Sizes: 2” (50NB), 3” (80NB), 4”(100 NB) , 6” (150NB) and 8” (200 NB)
Commonly Used Materials: Carbon Steel and Stainless Steel
Seals and Gaskets: Viton seals & CNAF gaskets are standard materials. However, based on application, PGT can offer the most applicable & chemically suitable materials
Types / Configurations: 10, 20, 30, 40, 50, 60, 70, 80, and 100
Note: Above shown image is only for pictorial representation
